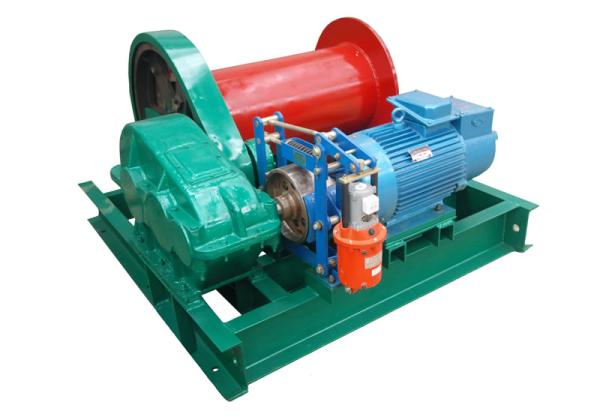

    Stainless Steel Electric Cable Hoist Winch For Cranes , Davits , s

    Ask Lasest Price
    Brand Name : Nante
    Model Number : JK3t
    Price : N/A
    Delivery Time : Within 2 months
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Stainless Steel Electric Cable Hoist Winch For Cranes , Davits , s

    Stainless Steel Electric Cable Hoist Winch For Cranes , Davits , s

    Place of Origin:

    Zhejiang, China

    Brand Name:

    Shuangpeng

    Model Number:

    JM3t

    Certification:

    ISO9001:2008

    Max. Lifting Load

    3t

    Span

    --

    Max. Lifting Height

    --

    Crane Travelling Speed

    --

    Trolley Travelling Speed

    --

    Minimum Order Quantity:

    1

    Price:

    N/A

    Packaging Details:

    Naked

    Delivery Time:

    Within 2 months

    Payment Terms:

    L/C, T/T

    Supply Ability:

    400 Sets per Year

    Nante manufactures and exports superior quality electric winches for various applications based on several parts of the world. We have 18 years of winch manufacture experience, with refined technology. Electric hoisting winding engine is a device consisting of a horizontal cylinder turned back by a crank on which a cable or a rope wind is bound. These are compact and light weight material handling and lifting equipments, suitable for installation on cranes, davits and s.


    Electric Winches are widely used in the following applications:

    1. Cranes

    2. Davits

    3. s

    4. Marine

    5. Punching driver

    6. Construction Site and Port


    Features:

    1. The final drive gears are made of heat treated carbon steel that provides it a great strength.

    2. It has an emergency crank handle.

    3. Our product is available in AC and DC models also.

    4. The front plate is made of stainless steel that provides a great rust resistance.

    5. The die formed base of the equipment helps in quick mounting applications.


    Safety Device:

    Safety DeviceLoad Limit SwitchRotational Limit SwitchRedundant paddle limit switchCross Limit SwitchPhase protection relay
    FunctionPrevent the crane load cargo exceed the max. lifting capacity.Prevent the hook block too high hit the drum or too low hit the ground.Prevent the hook block hit the drum.Prevent the winch hit the girder both end side.prevent the phase failure or phase loss

    General Drawing or Sketch or Draft Drawing

    Technical Data

    Model

    JM0.5

    JMl

    JM1.5

    JM2

    JM3

    JM5

    JM8

    Max Load (KN)

    5

    10

    15

    20

    30

    50

    80

    Rated Rope Speed (m/min)

    17.5

    12.5

    13

    10.5

    11.6

    9.9

    9.85

    Rope Dia. (mm)

    7.7

    9.3

    11

    13

    17

    21.5

    26

    Length of Rope

    100

    120

    120

    100

    150

    250

    400

    Motor Model

    Y90L-6

    Y132S-6

    Y132 Mz-6

    Y132Mz-6

    YZR160Mz-6

    YZRl60L-6

    YZR200L-6

    Power kw

    1.5

    3

    5.5

    5.5

    7.5

    11

    22

    Figure

    Length

    765

    1024

    1324

    1260

    1450

    1640

    2160

    Width

    720

    969

    969

    900

    1250

    7330

    2110

    Height

    428

    552

    552

    630

    880

    880

    1176

    Total Weight kg

    250

    460

    500

    700

    908

    1380

    2985
