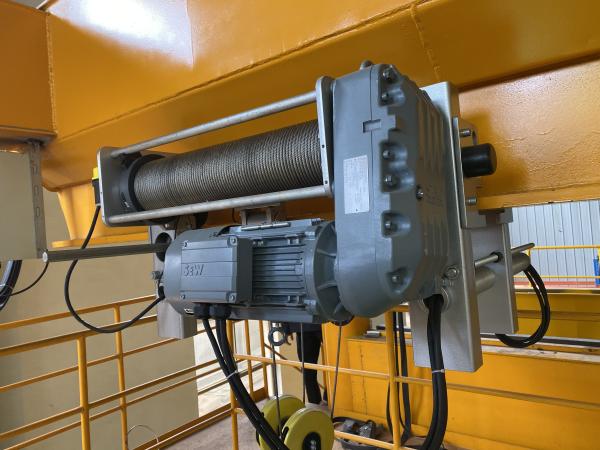

Low Headroom Hoist Electric Wire Rope Hoist for Lifting 10T with
Motor
Compact design, smooth operation and low noise level.
Three-in-one system integrated by pole-changing professional
hoisting motor, Different gear ratio makes more options for
different lifting speed.
Low energy consumption motor
High performance and stable brake with electromagneticdisk type.
IP55(IP56,IP66 is options), Class F(Class H is options) .
Made of seamless tube, CNC machined with precision of
concentricity.
Advanced processing methods ensure concentricity of the reels.
The depth of rope groove complies with the FEM standard.
High-strength lock plates are fastened on drum to hold the wire
rope ensuring the safety of lifting.
Top brand wire rope, adopt high-performance and high-trength wire
rope with zinc surfacing-plating,
effectively prevent corrosion. high breakingforce and good
flexibility.
Use special high-strength Nylon which light weight, good wear
resistance, Prevent wire rope from
skipping and loosing to off-groove, and safety first.
Forge high-strength alloy steel T grade hook, DIN standard with
safety clasp and wire rope sheath ergonomic design.
Top brand electrical unit and inverter for long service life.
Clear labeling and socket design for easy maintenance and wiring.
Multiple protection devices to make sure the safety
Low Headroom Electric Wire Rope Hoist is the newly developed type
which is specific to the box type beam but not the traditional I
beam. You can benefit from shock absorption and noise reduction.
What’s more, the distance for the gauge can be adjusted. This
products, by its newly unique design and great originality, have
gained a good reputation among users in China and abroad.
It adopts the standard series of German imported drive modules, and
cooperates with different pulley ratios to promote a rich product
series. The general layout is parallel (C-type structure), that is,
the winding device is arranged in parallel with the motor through
the reducer, with small limit size and compact structure.
1. Reducer
Third-class dead axel helica gear transmission structure is
adopted,; gear and gear axel are made of heat treated alloy steel.
2. Control Box
It has device with up an down stroke protection of break off
limiter and can cut off main circuit in an emergency,which ensures
safe operation of electric block.Electric elements are of long
service life and operational safety.
3.Steel Wire Rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in
use.
4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting
torque to brake asynchronous motor and does not need extra
arrester. The motor s load duration factor is 25%.
5. Button Switch
Its hand-operated, easy to handle,and has two modes of cord
operation and cordless remote control
6.Gear
By adopting Japanese technology, they are innovated symmetrical
arrayed high-speed synchronous gears, and are made from
international standard gear steel.
7.Chain
Adopts high strength chain and high precision welding
technology,meet ISO3077-1984 international standard;fits for gusty
overload work conditions;takes your hands a better feeling
multi-angle operation.
8.Hook
Made of high-class alloy steel,it has high strength and high
security; by using new design, weight will never escape.
Application
Used in the factory, mine, dock, warehouse, temperature-20 ~ + 40
°C, relative humidity under 85%.
Design Feature
(1) imported motor can be chosen for high working level up to M5,
low noise
(2) applies to factories, freight yards, terminals, power plants,
construction sites and other places
(3) Particularly suitable for the plant with restrict height,
maximize the effective lifting height
General Drawing
Technical Data
| Model | Lifting
Capacity
(t) | Lifting
Speed
(m/min) | Travelling
Speed
(m/min) | Working
Duty | Fall | Lifting
Motor
Power(kw)
| C | A1 | A2 | B | Hmin |
|
| NH A2XD | 2 | 8.0/1.2 | 15.8/5 | M5 | 2/1 | 2.5/0.37 | 100-400 | 420 | 320 | 590 | 570 |
| 3.2 | 4.0/0.6 | 15.8/5 | M5 | 4/1 | 2.5/0.37 | 100-400 | 420 | 320 | 436 | 500 |
| NH A3XD | 2.5 | 8.0/1.2 | 15.8/5 | M5 | 2/1 | 4.9/0.8 | 100-450 | 500 | 400 | 600 | 720 |
| 5 | 4.0/0.6 | 15.8/5 | M5 | 4/1 | 4.9/0.8 | 100-450 | 500 | 400 | 600 | 650 |
| NH A4XD | 6.3 | 10/1,6 | 15.6/5 | M4 | 2/1 | 12.5/2.0 | 100-500 | 570 | 500 | 700 | 950 |
| 12.5 | 5.0/0.8 | 15.6/5 | M4 | 4/1 | 12.5/2.0 | 100-500 | 570 | 500 | 700 | 800 |
