Superior Performance 10 Ton Low Headroom Hoist Lifting Height 15m for Manufacture

Low Headroom Electric Wire Rope Hoist is the newly developed type which is specific to the box type beam but not the traditional I beam. You can benefit from shock absorption and noise reduction. What’s more, the distance for the gauge can be adjusted. This products, by its newly unique design and great originality, have gained a good reputation among users in China and abroad.

It adopts the standard series of German imported drive modules, and cooperates with different pulley ratios to promote a rich product series. The general layout is parallel (C-type structure), that is, the winding device is arranged in parallel with the motor through the reducer, with small limit size and compact structure.

1. Reducer
Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel.

2. Control Box
It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.

3.Steel Wire Rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.

4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%.

5. Button Switch
Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control

6.Gear

By adopting Japanese technology, they are innovated symmetrical arrayed high-speed synchronous gears, and are made from international standard gear steel.

7.Chain

Adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.

8.Hook

Made of high-class alloy steel,it has high strength and high security; by using new design, weight will never escape.

Application

Used in the factory, mine, dock, warehouse, temperature-20 ~ + 40 °C, relative humidity under 85%.

Design Feature

(1) imported motor can be chosen for high working level up to M5, low noise
(2) applies to factories, freight yards, terminals, power plants, construction sites and other places
(3) Particularly suitable for the plant with restrict height, maximize the effective lifting height

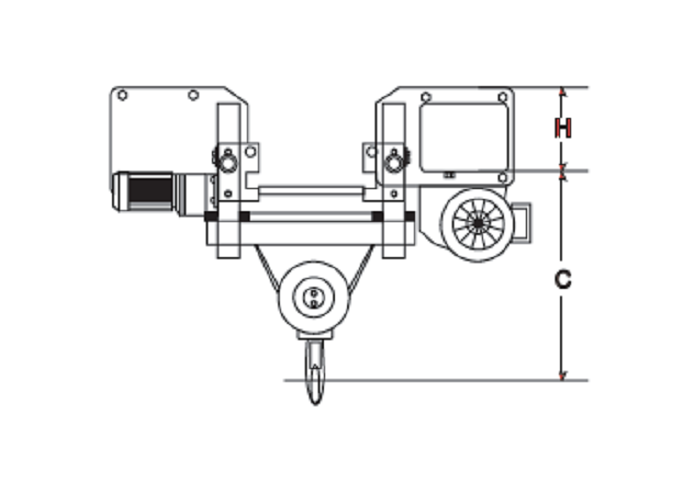

General Drawing

Technical Data

    Nante Machinery is a subsidiary company of Zhejiang Zhongjian Road & Bridge Machinery Co, . LTD.

    We have 25 years experience in lifting equipment manufacturing.Four production bases and two R&D Centers covers an area of morethan 100, 000 square meters, and above 400+ skilled employees, among which, a rough 10% are engineers. Our production lines are all equipped with world-leading brand tools and devices.

    In recent years, our annual revenue has steadily exceeded 80 million USD, in which  20% are contributed from oversea market. We have established long term business relationship with lots of clients from USA, Singapore, Indonesia, Kenya, India, Cambodia, South Africa, Albania, Chile etc.

    As a mature heavy machinery manufacturer, we not only produce individual industrial equipments, but also deliver an end-to-end solution to cover the entire project lifecycle including machinery design, manufacturing, installation and on-going maintenance. We have more than 50 models of products, which can be divided into five major categories as following:

1. Series of construction cranes

Bridge launching crane, form traveller, bridge deck launching gantry, tower crane etc.

2. Series of workshop, shipyard, and port cranes

overhead crane, gantry crane, jib crane and portal crane etc.

3. Various parts of cranes

Electric hoist, winch, motors, rails, bus bars etc.

4. Structural steel projects

Contractor of industrial steel structures such as new-built workshops, towers, chutes, etc

5. Steel Bailey bridges

Two standard models called Compact 100 and 200 in International market

    Quality concept lies deeply in our blood:

1. Passed ISO9001:2008 Quality Management System

2. Holder of Class A License of Manufacturing and Repairing of China Specialized Equipments.

3. Member of China Construction Machinery Association.

4. China AAA Credit Company

5. ZHEJIANG Top Brand and Trade Mark

    Fact is always more persuading than paper works. We Design and Build Chinese highest truss gantry crane, longest beam launcher and Drafter Chinese beam launcher national standard.

    We pursue the value of professional, innovation, integrity and win-win in our company’s long term development strategy. We target to become one of China’s top manufacturer and solution provider in the heavy machinery industry and a competitive player in the overseas market.
