    HFP56 PVC Housing Overhead Crane Hoist Parts Enclosed Conductor Rail System

    Ask Lasest Price
    Brand Name : Nante
    Model Number : HFP56
    Certification : ISO9001:2008
    Price : N/A
    Payment Terms : L/C, T/T
    Supply Ability : 90000 pcs per year
    Delivery Time : 30days or according to client's need
    • Product Details
    • Company Profile

    HFP56 PVC Housing Overhead Crane Hoist Parts Enclosed Conductor Rail System


    HFP56 Powerail Enclosed Conductor System


    Quick Details
    •Standard length: 4m.
    •Current: 35A~240A
    •Conductor material: copper
    •Single powerline, easytrack, single flexline, multiline, boxline


    Detailed Product Description
    The bottom opening can be sealed with a neoprene sealing strip to keep debris and fumes out. The current collector is self-guided in these systems and only needs to be towed with a towing arm. Multiple copper conductors in an enclosure (aluminium or PVC housing) is available in 3 to 16 conductors and amperage capacities from 30 to 240.


    Application
    The ranges of applications of HFP Power Rail Enclosed Conductor System

    1. Overhead and elongated tracks for cranes.
    2. Electric hoists, electric tools, stacking systems.
    3. Electric tools
    4. Other applications for supplying power to moving power load.

    HFP56 PVC Housing Overhead Crane Hoist Parts Enclosed Conductor Rail System

    Design features
    Compact arrangement, corrosion resistance and simple assembly are its essential features.

    Housing

    Color green, PVC housing for 4 conductors. Standard section 4 m.

    Other sections are available.

    The ground conductor is identified by international color code.

    Phase reversing prevented by design of the collector and housing.

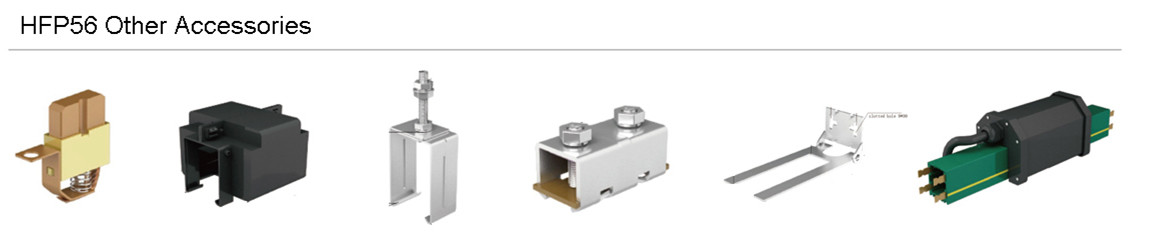

    Couplings
    Through PVC joint caps.
    Feed Sets
    Line feeds or end feeds.
    End caps
    The open ends of the powerail are closed by end caps for HFP.
    Hangers
    Standard brackets for powerail attachment to crane girders are available.
    Powerail with sliding and fixpoint hangers.
    Standard distance between suspension points for indoor and outdoor installations: 1200mm.
    HFP56 PVC Housing Overhead Crane Hoist Parts Enclosed Conductor Rail SystemHFP56 PVC Housing Overhead Crane Hoist Parts Enclosed Conductor Rail System


    Expansion during temperature fluctuation
    The Expansion sections are required to compensate the different expansions between copper conductors and steel-or concrete structures, in varying temperatures without interrupting electrial power.
    Expansion joints are used when the Powerail length between feeds, curves, switches or other fix points is exceeding 20m.
    Install one expansion joint every 100m.


    PVC Shrouded Conductor Rail
    Technical Parameters


    ModelPole No.Cross sectionMax. currentLeakage-distanceMax. voltageResistanceWeight
    HFP56-4-8/354835356001.9442.09
    HFP56-4-10/5041050356001.6562.16
    HFP56-4-12/6541265356001.3212.23
    HFP56-4-15/8041580356001.1372.3
    HFP56-4-20/100420100336001.0112.43
    HFP56-4-25/120425120336000.7132.56
    HFP56-4-35/140435140336000.5222.95
    HFP56-4-50/170450170336000.3373.25
    HFP56-4-70/210470210336000.2653.85
    HFP56-4-80/240480240306000.2234.16
