    Electrification Mobile Crane Parts C Track Cable Trolley Festoon System

    Ask Lasest Price
    Brand Name : NANTE
    Model Number : C-track
    Certification : HS Code 842511
    Payment Terms : L/C, T/T
    Supply Ability : 6000 m / Month
    Delivery Time : Within 10 days
    • Product Details
    • Company Profile

    Electrification Mobile Crane Parts C Track Cable Trolley Festoon System

    Nante cable festoon system provide a safe, effective and economical way of supplying power to cranes, hoists and moving machinery travelling along fixed tracks.Nante can offer the festoon system for C track, I beam, Angel Bar, Wire rope, Square Pipe etc.


    Electrification Mobile Crane Parts C Track Cable Trolley Festoon System.

    Electrification Mobile Crane Parts C Track Cable Trolley Festoon System

    Electrification Mobile Crane Parts C Track Cable Trolley Festoon System

    Specifications
    For delivering power&control to mobile equipment in a safe, efficient and maintenance free method.

    Detailed Product Description
    Galvanized Steel Conductor Rails With Brass Dowel , C Rail and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.

    Detailed Product Description

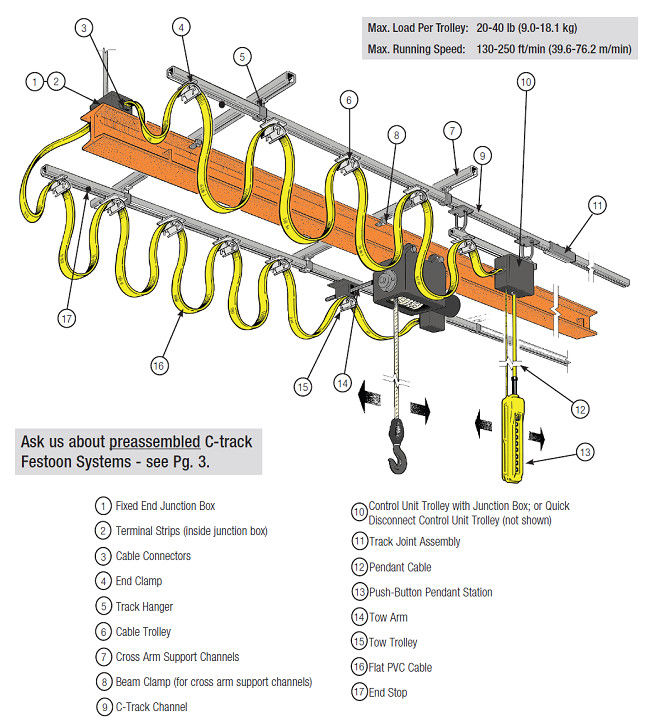

    Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.
    The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.

    Application
    C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.

    Design features:
    Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation

    TypeC32*30*1.5C40*40*2.0C63*63*4.0C30*28*1.5
    MaterialGalvanized steel / Except C63
    Weight kg/m1.1925.981.03
    Technical data
    A32406330
    B30406328
    C12131810
    61.5241.5
    SpacingMax. Cable Load
    1.5m89kg188kg503kg70kg
    2.0m51kg103kg425kg36 kg
    2.5m39kg73kg302kg22kg
    3.0m23kg49kg195kg-
    4.0m-28kg85kg-
