LH 10T-20m Double Girder Overhead Crane in workshop

LH 10T-20m Double Girder Overhead Crane in workshop. When heavy loads and wide spans are required, the double beam electric overhead travelling cranes can exert their strength. They consist of two torsion-free box girders. It makes them especially suitable for lifting and transporting heavy loads.

Double girder overhead industrial crane is characterized by strong bearing, wide span, and overall stability with various models, the quality is better compared with single girder gantry crane with the same capacity. They are available with load capacities up to 50T and with spans up to 35 m. Articulated end carriage joints ensure positive contact of all four wheels with the track. The range of fixing arrangements allows the appropriate integration of double girder travelling cranes into new buildings as well as into existing buildings. Just as with all other types of double girder travelling cranes, the profiles of the main girder are optimally produced using computers so that maximum performance with a minimum of dead-weight can be achieved. An advantage that has financial benefits.

Double girder overhead crane with hoist are widely used in the following applications:

1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses, where service requirements are infrequent.
2. Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.
3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants & induction furnace.
4. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for hot metal application on request.

Design features include:

DESIGN:

Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components

Structure:

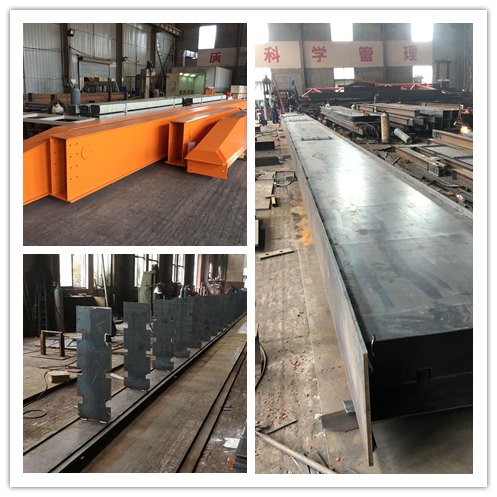

Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.

MOTORS:

Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.

Variable Frequency Drives & Remote Controls –

We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.

Brakes :

Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.

Controls :

Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.

ELECTRICAL PANEL:

Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.

PAINTING:

Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.

LIMIT SWITCHES:

To prevent over hoisting & over lowering of hook.

General Drawing or Sketch or Draft Drawing

Technical Parameters

    Nante Machinery is a subsidiary company of Zhejiang Zhongjian Road & Bridge Machinery Co, . LTD.

    We have 25 years experience in lifting equipment manufacturing.Four production bases and two R&D Centers covers an area of morethan 100, 000 square meters, and above 400+ skilled employees, among which, a rough 10% are engineers. Our production lines are all equipped with world-leading brand tools and devices.

    In recent years, our annual revenue has steadily exceeded 80 million USD, in which  20% are contributed from oversea market. We have established long term business relationship with lots of clients from USA, Singapore, Indonesia, Kenya, India, Cambodia, South Africa, Albania, Chile etc.

    As a mature heavy machinery manufacturer, we not only produce individual industrial equipments, but also deliver an end-to-end solution to cover the entire project lifecycle including machinery design, manufacturing, installation and on-going maintenance. We have more than 50 models of products, which can be divided into five major categories as following:

1. Series of construction cranes

Bridge launching crane, form traveller, bridge deck launching gantry, tower crane etc.

2. Series of workshop, shipyard, and port cranes

overhead crane, gantry crane, jib crane and portal crane etc.

3. Various parts of cranes

Electric hoist, winch, motors, rails, bus bars etc.

4. Structural steel projects

Contractor of industrial steel structures such as new-built workshops, towers, chutes, etc

5. Steel Bailey bridges

Two standard models called Compact 100 and 200 in International market

    Quality concept lies deeply in our blood:

1. Passed ISO9001:2008 Quality Management System

2. Holder of Class A License of Manufacturing and Repairing of China Specialized Equipments.

3. Member of China Construction Machinery Association.

4. China AAA Credit Company

5. ZHEJIANG Top Brand and Trade Mark

    Fact is always more persuading than paper works. We Design and Build Chinese highest truss gantry crane, longest beam launcher and Drafter Chinese beam launcher national standard.

    We pursue the value of professional, innovation, integrity and win-win in our company’s long term development strategy. We target to become one of China’s top manufacturer and solution provider in the heavy machinery industry and a competitive player in the overseas market.
